Ford Escort LX 4 1998 Engine Compartment Fuse Box/Block Circuit Breaker
| FUSE LINK CARTRIDGE | AMPS | CIRCUIT PROTECTED |
|---|---|---|
| FUEL INJ. | 30A | Air Bags, Engine Controls, Generator |
| DEFOG. | 30A | Rear Window Defrost |
| MAIN | 100A | Charging System, BTN,Cooling Fan, Fuel Pump, OBDII, ABS Fuses, Ignition Switch, Headlamps |
| BTN | 40A | Hazard |
| ABS | 60A | ABS Main Relay |
| COOLING FAN | 40A | Constant Control Relay Module |
| FUSE | AMPS | CIRCUIT PROTECTED |
|---|---|---|
| OBD-II | 10A | Data Link Connector (DLC), Instrument Cluster |
| FUEL PUMP | 30A | Engine Control |
| HEAD RH | 10A | Head Lamps |
| HEAD LH | 10A | Head Lamps |

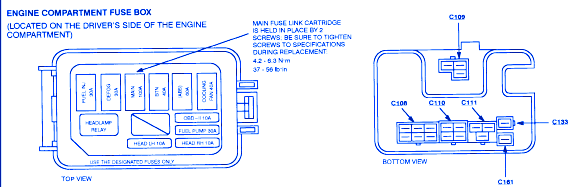

Ford Escort LX 4 1998 Engine Compartment Fuse Panel/Board – Fuse Symbol Map
