Ford Escort ZX2 2000 Main Engine Fuse Box/Block Circuit Breaker Diagram

Ford Escort ZX2 2000 Main Engine Fuse Box/Block Circuit Breaker Diagram

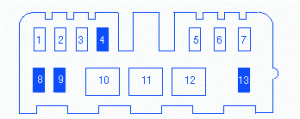

Fuse/Relay SymbolFuse/Relay Map
1Left Rear Park/Stop/Turn Lamps
2Engine Controls
3Right Rear Park/Stop/Turn Lamps
4Not Used
5Rear Window Defogger Relay
6Right Front Park/Turn Lamp
7Park Lamp Relay
8Not Used
9Not Used
10Multi-Function Switch, Windshield Wiper Motor, Blower Motor Relay
11Power Windows/Locks
12Park Lamp Relay
13Not Used

Ford Escort ZX2 2000 Main Engine Fuse Panel/Board – Fuse Symbol Map
