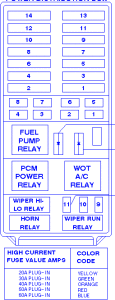

Ford Explorer With E.A.T.C 1997 Distribution Fuse Box/Block Circuit Breaker Diagram

Ford Explorer With E.A.T.C 1997 Distribution Fuse Box/Block Circuit Breaker Diagram



Fuse PositionAmpsCircuits Protected
FUSE MAXI
130ARear Window Defrost Relay
230APCM Power Relay
320AFuel Pump Relay, RAP Module
420AHeadlamps, Autolamps, Multi-Function Switch
530APower Seats, Power Lumbar, Door Lock/Unlock Relays, ACCY Delay Relay, Memory Seat Control
630A4WABS Main Relay
720ATrailer Tow Relays
830ABattery Saver, Headlamp Relay
950ABlower Motor Relay, Blower Motor
1030A4WABS Pump Relay
1120AHorn Relay, Powertrain Control Module (PCM)
1250AAir Ride Control Relay
1360AHazard Flasher, Brake On/Off Switch, Cigar Lighter, Power Antenna, Power Mirrors, Autolamps, Instrument Cluster, GEM, Radio, Blower Motor Relay, Memory Seats, EATC, Message Center
1460AIgnition Switch
FUSE MINI
130APremium Sound/JBL Amplifier, Subwoofer Amplifier
215ALiftgate Wiper Relays
330AAuxiliary Power
420ATranfer Case Relay
4**10AAirbag Diagnostic Monitor
515AAi Ride Control (ARC)
615AGenerator/Voltage Regulator
710AAir Bag Diagnostic Monitor
7**20ATranfer Case Relay
815AFoglamp Relay, Daytime Running Lamp Module
9-Not Used
10-Not Used
1120AHego System

Ford Explorer With E.A.T.C 1997 Distribution Fuse Panel/Board – Fuse Symbol Map
