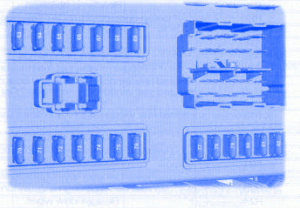

Ford Fiesta 2004 Main Fuse Box/Block Circuit Breaker Diagram
| Fuse | Amps | Colour | Circuits Protected |
|---|---|---|---|
| 63 | 5A | Tan | Rear Parking Aid, Rain Sensor |
| 64 | 2A | Grey | Acceleration Pedal Demand Sensor |
| 65 | 15A | Blue | Brake Lamp Switch |
| 66 | 5A | Tan | Instrument Cluster, PATS Supply, Tachograph, Instrument Panel Switch Illumination |
| 67 | 10A | Red | Wiper Stalk Switch |
| 68 | 10A | Red | Restraints Control Module |
| 69 | 20A | Yellow | Exterior Lamp Switch (KL15) |
| 70 | 20A | Yellow | Battery Backed Sounder |
| 71 | 5A | Tan | Exterior Lamp Switch (KL30) |
| 72 | 10A | Red | Battery Saver Supply, OBDII (KL30) |
| 73 | 15A | Blue | Radio, Navigation Unit and Phone Supply |
| 74 | 5A | Tan | Instrument Cluster, Fuel-Fired Booster Heater Timer, Remote Keyless Entry Supply, Interior Motion Sensor (KL30) |
| 75 | 5A | Tan | Side Lamps Right-Hand Side |
| 76 | 7.5A | Brown | Side Lamps Left-Hand Side |
| 77 | 5A | Tan | Ignition Switch Supply, Battery Disconect Switch Coils Supply |
| 78 | 15A | Blue | Central Locking |
| 79 | 7.5A | Brown | Number Plate Lamp, Side Markers |
| 80 | 15A | Blue | Front Fog Lamps |
| 81 | 10A | Red | Rear Fog Lamps |
| 82 | 2A | Grey | Radio, Navigation Unit, Instrument Cluster |
Ford Fiesta 2004 Main Fuse Panel/Board – Fuse Symbol Map
