Ford Flareside 1992 Dash Fuse Box/Block Circuit Breaker Diagram

Ford Flareside 1992 Dash Fuse Box / Block Circuit Breaker Diagram

Fuse PositionAmpsCircuit Protected
115AStop/Hazard Lamp, Speed Control
28 25 C.BWinshield Wiper Motor, Wiper Control module
3-Not Used
420ATurn Lamp, License Lamps, Anti-theft Module, Warning Chime, Flash to Pass, Trailer Running Lamp Relay, Trailer B/U Lamp Relay, Running Lamps, RABS
515AAir Bag Module, DRL Module, AUX, Battery Relay, Starting System, Transmission Control Switch, Backup Lamps, Turn Lamps
620ASpeed Control, Remote Keyless Entry Module, Illuminated Entry, Accessory Tap, Anti-Thaft Module, Trailer Battery Charge Relay
730AIgnition System, Instrument Cluster, PIA Engine (Diesel Only, PCM Power Relay, Ignition Control Module
815ACourtesy Lamp Switch, Illuminated Entry, Power Mirrors, Visor Lamps, Power Door Lock, Anti-Theft Indicator, Radio Memory, Dome/Map Lamp, PSOM, Remote Keyless Entry Module
915AA / C Switch
1015A orCigar Lighter
20ACigar Lighter, Rear Power Outlet
1115ARadio and Clock, Main Light Switch
1220A C.BAnti-Theft Module, Remote Keyless Entry Module or W / O A / T Power Door Locks, Memory Lock Module
135AInstrument Panel Illumination Lamps
1420A C.BPower Windows
1520AAir Bag Module
1630APower Lumber, Moduled Vehicle Power
1720ARABS, PSOM
1815AInstrument Panel Warning Lamps, Warning Chime

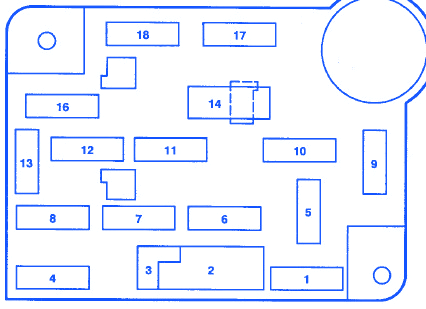

Ford Flareside 1992 Dash Fuse Panel / Board – Fuse Symbol Map
