Ford Mustang 2005 Passenger Compartment Fuse Box/Block Circuit Breaker Diagram
| Fuse/Relay Location | Fuse Amp Rating | Fuse Function Description |
|---|---|---|
| 1 | Mini Relay | Accessory Delay #1 |
| 2 | - | Not Used |
| 3 | 10A | Wiper Power |
| 4 | 5A | power Mirrors |
| 5 | - | Not Used |
| 6 | 5a | Accessory Delay Feeds |
| 7 | 5A (coupe), 10A Convertible | Overdrive Cancel |
| 8 | 10A | Cluster, Data Link Connector (DLC) |
| 9 | - | Not Used |
| 10 | 5A | Instrusion Sensing Module (ISM), Climate Control |
| 11 | 5A | Not Used (Spare) |
| 12 | 5A | Climate Control, Ignition |
| 13 | - | Not Used |
| 14 | 5A | A/C Cycle Switch |
| 15 | 10A | Brake On/Off (BOO) Power |
| 16 | 5A | Cluster |
| 17 | 10A | Restraint Control Module (RCM), Passenger Occupant Detection System (PODS), Passenger Air Bag Deactivation Indicator (PADI) |
| 18 | 10A | Anti-Lock Brake System (ABS), Positive Crankcase Ventilation (PCV) Valve Heater, Ignition |
| 19 | 5A | Powertrain Control Module (PCM) Relays, Pasive Anti-Theft System (PATS) |
| 20 | 10A | Radio (Start) |
| 21 | 10A | Starter Relay |

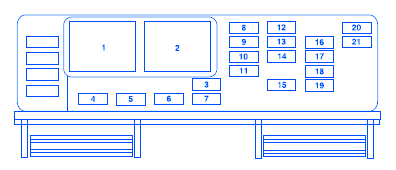

Ford Mustang 2005 Passenger Compartment Fuse Panel/Board – Fuse Symbol Map
