Ford Mustang GT 1997 Power Distribution Fuse Box/Block Circuit Breaker Diagram
| Cavity Number | Rating | Color | Circuit Protected |
|---|---|---|---|
| 1 | 25A | Natural | Power Seats |
| 2 | 20A | Yellow | Horn, Fog Lamps, Daytime Running Lamps. Control Module |
| 3 | 25A | Natural | Interior Lamps |
| 4 | 25A | Natural | Audio |
| 5 | 20A | Yellow | Alternator |
| 6 | 30A | Lt. Green | Cigar Lighter |
| 7 | 30A | Circuit Breaker | Convertible Top Motor |
| 8 | 60A | Lt. Blue | Anti-Lock Brake System (ABS) |
| 9 | 40A | Amber | Ignition Switch |
| 10 | 40A | Amber | Ignition Switch |
| 11 | 40A | Amber | Ignition Switch |
| 12 | 50A | Red | Headlamps |
| 13 | 20A | Yellow | Electronic Engine Control |
| 14 | 40A | Amber | Heated back Window |
| 15 | 20A | Yellow | Fuel Pump |
| 16 | 60A | Lt. Blue | Engine Cooling Fan |
| 17 | 30A | Lt. Green | Thermactor Air Pump (4.6L4V Only) |
| 18 | - | - | Not Used |
| 19 | Relay | - | Horn |
| 20 | Relay | - | Starter |
| 21 | Relay | - | Fog lamps |
| 22 | - | - | Power Distribution Box |

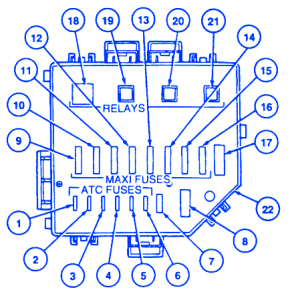

Ford Mustang GT 1997 Power Distribution Fuse Panel/Board – Fuse Symbol Map
