Ford Probe 1989 Fuse Box/Block Circuit Breaker Diagram
| FUSE | AMPS | CIRCUITS PROTECTED | |
|---|---|---|---|
| 1 | Radio | 15A | Radio, Warning Chime, Remote Control Morrors |
| 2 | Cigar | 15A | Cigar Lighter |
| 3 | Engine | 15A | Electronic Engine Controls, Heating-A/C |
| 4 | Meter | 15A | Back-Up Lamps, Radio, Speed Control, Instrument Cluster, Programmed Ride Control, Warning Chime, Rear Window Defrost, Heating-A/C, 4EAT Control, #6 Monitor Fuse |
| 5 | Cooling Fan | 20A | Heating-A/C |
| 6 | Monitor | 7.5A | Vehicle Maintenance Module/System Scanner |
| 7 | Turn | 15A | Anti-Lock Brake System, Power Steering Control, Turn Signal/Hazard Flasher Lamp |
| 8 | Power Wind | 30A | Power Window |
| 9 | E.I.C | 10A | trip Computer |
| 10 | rear Wiper | 15A | Rear Wiper/Washer |
| 11 | Wiper | 20A | Wiper/washer |
| 12 | Power seat | 30A | Power seats |
| 13 | Door Lock | 20A | Power Lock |
| 14 | Stop | 20A | Horn, Stop Lamps |
| 15 | Hazard | 15A | Turn Signal/hazard Flasher Lamps |
| 16 | Room | 10A | Electronic Engine Controls, Instrument Cluster, Radio, Courtesy Lamps, Warning Chime, Headlamps, 4EATC Control |
| 17 | Tail | 15A | Courtesy Lamps, Exterior Lamps, Instrument Illumination |
| 18 | Fog | 15A | Fog Lamps |
| 19 | Defog | 30A | Rear Window Defrost |

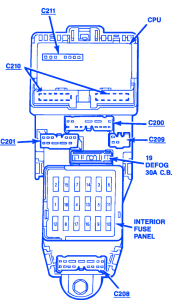

Ford Probe 1989 Fuse Panel/Board – Fuse Symbol Map
