Ford Transit Fifth Generation 2008 Primary Fuse Box/Block Circuit Breaker Diagram

Ford Transit Fifth Generation 2008 Primary Fuse Box/Block Circuit Breaker Diagram



FUSEAMPERE (A)CIRCUIT PROTECTED
C470AEngine Compartment Fuse Box, Starter Motor, Alternator
D100APassenger Compartment Fuse Panel, Body Control Module Fuse Box
E40APowertrain Control Module, Anti-lock Brake System
F200APassenger Compartment Fuse Panel
G100APassenger Compartment Fuse Panel
H80APositive Temperature Coefficient Heater
J-Not Used
K100AEngine Junction Box Feed
L100APassenger Compartment Fuse Panel
M60APassenger Compartment Fuse Panel Supply
N60APassenger Compartment Fuse Panel Supply
P60AAuxiliary Power Point 1
R60AAuxiliary Power Point 2
S60AAuxiliary Power Point 3

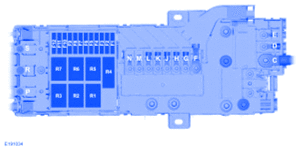

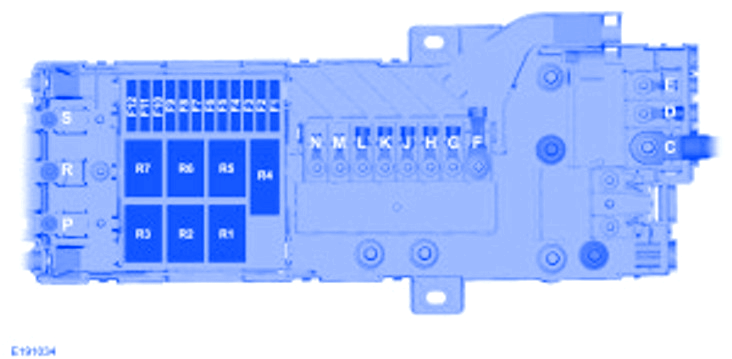

Ford Transit Fifth Generation 2008 Primary Fuse Panel/Board – Fuse Symbol Map
