GM Matic 2 Door 1994 Hatchback Electrical Circuit Wiring Diagram

GM Matic 2 Door 1994 Hatchback Electrical Circuit Wiring Diagram

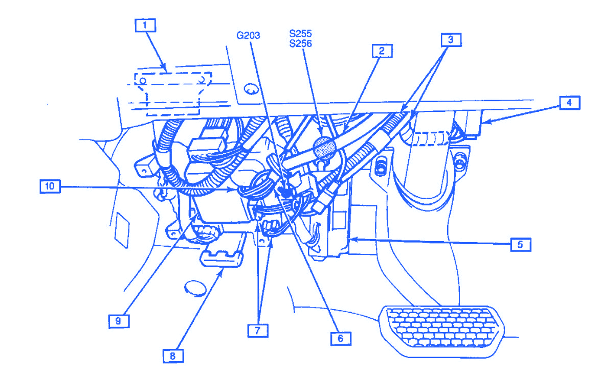

SymbolDescription
1Data Link Connector (DLC)
2Ignition Switch Jumper
3Combination Switch Jumper
4Transaxle Control Module (TCM)(HARDTOP)
5Transaxle Control Module (TCM)(CONVERTIBLE)
6Junction Block Connector C2 (To Ignition Switch)
7Junction Block Connectors C3 and C4
8Fuse Box (HARDTOP)/ SIR Fuse Box (CONVERTIBLE)
9Junction Block
10Junction Block Connector C1

GM Matic 2 Door 1994 Hatchback Electrical Circuit Symbol Map
