GM Vortec 2006 Instrument Fuse Box/Block Circuit Breaker Diagram
| Fuse No. | Name | Size | Load Circuit | Load | ||
|---|---|---|---|---|---|---|
| 1 | OPEN | - | - | - | ||
| 2 | HORN | 20A | 640 | Horn Relay | ||
| 3 | CTSY | 20A | 40 | Dome & Courtesy Lamps (Body Builder) | ||
| 4 | GAUGES | 20A | 39 | DRL Relay, DRL Control Module, Cluster, Audio Alarm | ||
| 5 | OPEN | - | - | - | ||
| 6 | OPEN | - | - | - | ||
| 7 | AUX PWR | 20A | 1040 | Body Builder | ||
| 8 | OPEN | - | - | - | ||
| 9 | PK LPS | 20A | 240 | Headlamp Switch (Park Marker and Tail Lamps) | ||
| 10 | TURN | 15A | 139 | Turn Signal Switch | ||
| 11 | AUTO PARK B/U | 15A | 139 | Park/NEV Posn & B/U Lamp Switch | ||
| 12 | JACKS ALARM | 5A | 141 | Jacks Alarm | ||
| 13 | CIG LTR | 20A | 1140 | Cig Lighter (Body Builder) | ||
| 14 | ILLUM | 10A | 8 | I/P Cluster, Audio Alarm, Body Builder Feed | ||
| 15 | OPEN | - | - | - | ||
| 16 | RADIO ACC | 15A | 43 | Body Builder Radio | ||
| 17 | MKR LPS | 10A | 814 | License Lamps Body Builder Marker LPS | ||
| 18 | OPEN | - | - | - | ||
| 19 | RADIO BAT | 10A | 1240 | Body Builder Radio | ||
| 20 | OPEN | - | - | - | ||
| 21 | OPEN | - | - | - | ||

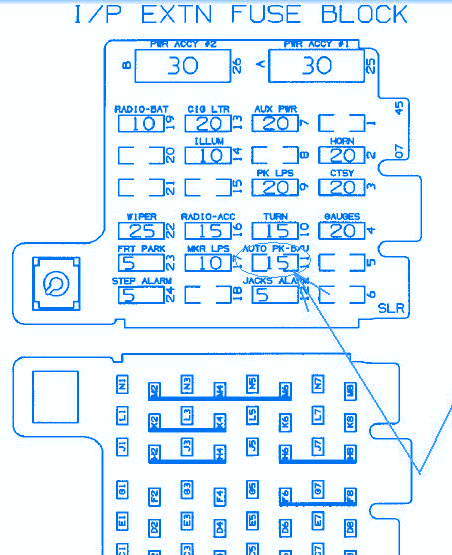

GM Vortec 2006 Instrument Fuse Panel/Board – Fuse Symbol Map
