GMC Envoy 2000 Under The Seat Fuse Box/Block Circuit Breaker Diagram
| Mini Fuses | Usage |
|---|---|
| 01 | Right Door Control Module |
| 02 | Left Door Control Module |
| 03 | LGM 2 |
| 04 | TBC 3 |
| 05 | Rear Fog Lamps |
| 06 | LGM/DSM |
| 07 | TBC 2 |
| 08 | Power Seat |
| 09 | Blank |
| 10 | DDM |
| 11 | AMP |
| 12 | PDM |
| 13 | Rear Climate Control |
| 14 | Left Rear Parking Lamps |
| 15 | Auxiliary Power 2 |
| 16 | VEH CHMSL |
| 17 | Right Rear Parking Lamps |
| 18 | Lock |
| 19 | Blank |
| 20 | Sunroof |
| 21 | Locks |
| 22 | - |
| 23 | Blank |
| 24 | Unlock |
| 25 | Blank |
| 26 | Blank |
| 27 | OH Battery/On Star System |
| 28 | - |
| 29 | Rainsense Wipers |
| 30 | Parking Lamps |
| 31 | TBC 4CC |
| 32 | TBC 5 |
| 33 | Front Wipers |
| 34 | VEH Stop |
| 35 | Blank |
| 36 | HVAC B |
| 37 | Front Parking Lamps |
| 38 | Left Turn Signal |
| 39 | HVAC 1 |
| 40 | TBC 4 |
| 41 | Radio |
| 42 | TR Park |
| 43 | Right Turn Signal |
| 44 | HVAC |
| 45 | Rear Fog Lamps |
| 46 | Auxiliary Power 1 |
| 47 | Ignition 0 |
| 48 | Four-Wheel Drive |
| 49 | Blank |
| 50 | TBC IG |
| 51 | Brakes |
| 52 | TBC Run |

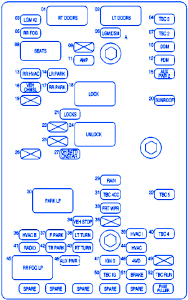

GMC Envoy 2000 Under The Seat Fuse Panel/Board – Fuse Symbol Map
