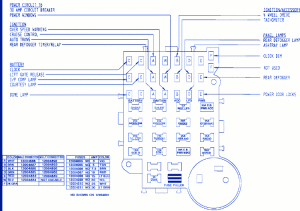

GMC S-15 1990 Ignition Fuse Box/Block Circuit Breaker Diagram
| FUSE/RELAY MAP | AMPS |
|---|---|
| POWER CIRCUIT 76 | |
| -Circuit Breaker, Power Windows | (30 Amp) |
| IGNITION | |
| -Over Speed Warning | |
| -Cruise Control | |
| -Auto Trans | |
| -Rear Defogger Timer/Relay | |
| BATTERY | |
| -Clock | |
| -Lift Gate Release | |
| -I/P Comp Lamp | |
| -Courtesy Lamp | |
| -Dome Lamp | |
| IGNITION/ACCESSORY | |
| -4 Wheel Drive | |
| -Tachometer | |
| PANEL LAMPS | |
| -Rear Defogger Lamp | |
| -Ashtray Lamp | |
| -Clock Dim | |
| -Rear Defogger | |
| -Power Door Locks | |
| INGT LPG | 5A |
| PWR ACC | 30A C.B |
| HORN/DM | 20A |
| IGN/GAGE | 20A |
| CHOKE | 20A |
| STO[P/HAZ | 15A |
| T/L CTSY | 20A |
| TURN/BU | 15A |
| HTR A/C | 25A |
| RADIO | 15A |
| ECM B | 10A |
| ECM 1 | 10A |
| PWR WDO | 30A C.B |
| WIPER | 25A |
| CRANK | 3A |
