GMC Savana 1500 LS 2005 Under Seat Fuse Box/Block Circuit Breaker Diagram
| FUSE SYMBOL | FUSE MAP | AMPS |
|---|---|---|
| 1 | SPARE | 10A |
| 2 | OSRVM | 15A |
| 3 | CSTY LP/SEO | 10A |
| 4 | LR STOP/TRN | 10A |
| 5 | CARGO LKS | 10A |
| 6 | RR STOP/TRN | 10A |
| 7 | DRV LKS | 10A |
| 8 | STOP/CHMSL | 10A |
| 9 | HVAC 1 | 10A |
| 10 | HVAC | 20A |
| 11 | BRKS | 10A |
| 12 | HTD MIR/DEFOG | 30A |
| 13 | RR BLOWER | 30A |
| 14 | DR TRN MIR | 10A |
| 15 | DOOR LKS | 20A |
| 16 | UPFTR PRK | 10A |
| 17 | NOT AVAIBLE | |
| 18 | LR PRK | 10A |
| 19 | PASS TRN MIR | 10A |
| 20 | RR PRK | 10A |
| 21 | TRLR PRK | 15A |
| 22 | FR PRK | 10A |

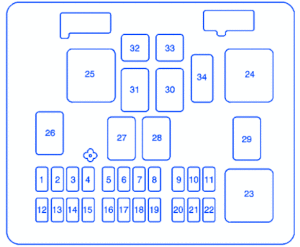

GMC Savana 1500 LS 2005 Under Seat Fuse Panel/Board – Fuse Symbol Map
