GMC Savana BCM 2005 Dash Inside Electrical Circuit Wiring Diagram
| SYMBOL | DESCRIPTION |
|---|---|
| 1 | Shock Sensor |
| 2 | Shock Sensor Connector |
| 3 | Vehicle Communication Unit |
| 4 | Heated Seat Sswitch Rear Connector |
| 5 | Stereo Controller Rear |
| 6 | Stereo Controller Rear Connector |
| 7 | Auxiliary Power Connector Rear Console |
| 8 | CD Changer |
| 9 | CD Changer Connector |
| 10 | Audio Amplifier |
| 11 | Audio Amplifier Connectors |
| 12 | Sub Woofer Connector C304 |
| 14 | Sub Woofer |
| 15 | C305 |
| 16 | Security LED |
| 17 | Console Trim Cover |
| 18 | Body Control Module |

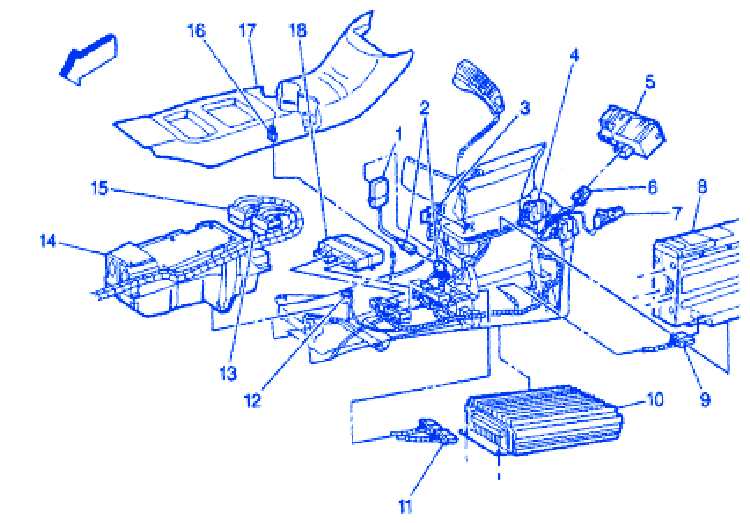

GMC Savana BCM 2005 Dash Inside Electrical Circuit Symbol Map
