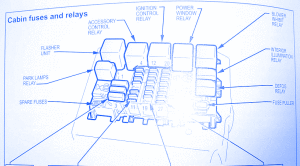

Holden Commodore VY 2003 Fuse Box/Block Circuit Breaker Diagram

Holden Commodore VY 2003 Fuse Box/Block Circuit Breaker Diagram



Fuse SymbolAmpsFuse Map
120APower Windows
220APower Seats
320ASunroof
410APark Lamps
515AStop Lamps
610AInterior Illumination
715AHazard Lamps/Antenna Drive Via BCM
8-Spare
915AHorn
107.5AIgnition Switch
117.5AInstrument Illumination
1215ATurn Signal & Back-Up Lamps
137.5AECC. TRIP Computer Instrument & Telematics
1420ACigar Lighter
1510ACruise, Power Mirrors & Level Ride
167.5ARadio, MFD, Navigation & Cell Phone
1720AAccessory Socket
1820AFront Wiper Washer
19-Spare
2015APower Locks, Power Windows & Theft Horn
2110AInstruments & Climate Control
2220AHeated Rear Window
2315ARadio, Cell phone & Navigation
2420ASub-Woofer
30AAmplifier
2510AEntertainment System
2615ASRS
2710AAnti Lock Brake

Holden Commodore VY 2003 Fuse Panel/Board – Fuse Symbol Map
