Honda Accord 1800 2002 Mini Fuse Box/Block Circuit Breaker Diagram

Honda Accord 1800 2002 Mini Fuse Box/Block Circuit Breaker Diagram



No.AmpsCircuit Protected
110ARadio Motor Antenna
27.5ADay Light
37.5AStarter Signal
47.5AHeater Control Relay, A/C Clutch Relay, Cooling Fan Relay
57.5APower Mirror
630ASpare Fuse
77.5ATurn Signals
810ASpare Fuse
930AWiper, Washer
1010APower Window Relay
117.5AECU (Cruise Control) TCM
1220ASpare Fuse
137.5ASpare Fuse
1410ASRS
1515AFuel Pump
1610Aack-Up Light, meter Lights(Turn Signals)
1715ASpare Fuse

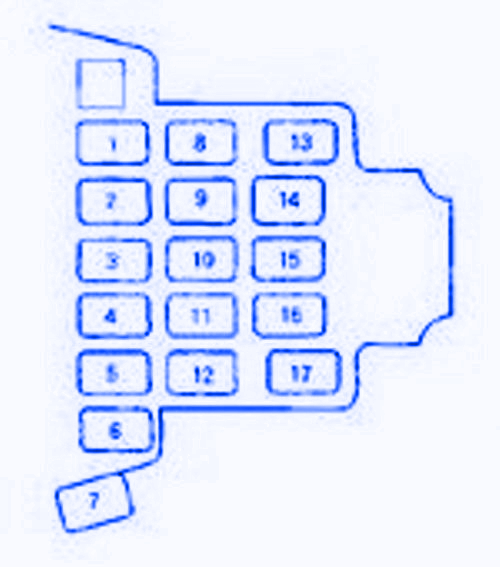

Honda Accord 1800 2002 Mini Fuse Panel/Board – Fuse Symbol Map
