Honda Accord Sedan 2009 Driver’s Side Interior Fuse Box/Block Circuit Breaker Diagram
| No. | Amps. | Circuit Protected |
|---|---|---|
| 1 | - | Not used |
| 2 | - | Not Used |
| 3 | 15A | Washer |
| 4 | 7.5A | Wiper |
| 5 | 7.5A | Meter |
| 6 | 7.5A | ABS/VSA |
| 7 | 15A | ACG |
| 8 | 7.5A | STS |
| 9 | 20A | Fuel Pump |
| 10 | 10A | VB SOL |
| 11 | 10A | SRS |
| 12 | 7.5A | ODS (Occupant Detection System) |
| 13 | - | Not Used |
| 14 | 10A | ACM |
| 15 | 7.5A | Daytime Running Lights |
| 16 | 7.5A | A/C |
| 17 | 7.5A | Accessory, Key , Lock |
| 18 | 7.5A | Accessory |
| 19 | 20A | Drivers Power Seat Sliding |
| 20 | 20A | Moonroof |
| 21 | 20A | Drivers Power Seat Reclining |
| 22 | 20A | Rear Left Power Window |
| 23 | 15A | Front Accessory Power Socket |
| 24 | 20A | Driver power Window |
| 25 | 10A | Drivers Side Door Lock |
| 26 | 10A | Left Front Fog Light |
| 27 | 10A | Left Side Small Lights (Exterior) |
| 28 | 10A | Left Headlight High Beam |
| 29 | 7.5A | TPMS |
| 30 | 10A | Left Headlight Low Beam |
| 31 | - | Not Used |

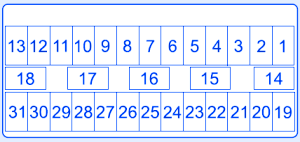

Honda Accord Sedan 2009 Driver’s Side Interior Fuse Panel/Board – Fuse Symbol Map
