Honda Civic 2001 Main Relay Fuse Box/Block Circuit Breaker Diagram

Honda Civic 2001 Main Relay Fuse Box/Block Circuit Breaker Diagram



Fuse No.Fuse NameAmpsComponent Or Circuit Protected
41BATTERY80APower Distribution
42IG140AIgnition Switch
43INTERIOR LIGHT7.5ADLC, Ceiling Light, Trunk Light
44FI E/M15A (20GX)PGM-FI Main Relay, Fuel Injection Relay (GX)
45--Not Used
46POWER WINDOW40APower Window Relay
47BACK UP7.5AStereo Radio Tuner ('96-'98 Models), Audio Unit ('99-'00 Models), Heater Control Panel, PCM/ECM, TCM ('96-'98 CVT)
48HEADLIGHT30AHeadlights
49--Not Used
50REAR DEFROSTER30ARear window Defogger Relay
51DOOR LOCK UNIT, ROOF20APower Door Lock Control Unit (all except '99-'00 models with keyless), Keyless Door Lock Control Unit ('99-'00 models with Keyless), Moonroof
52HORN, STOP LT15AHorn Relay, Brake Switch
53HAZARD10AHazard Warning Switch
54OPTION40ASecurity System (Option)
55HEATER MOTOR40ABlower Motoor Relay
56(CONDENSER FAN)20ACondenser Fan Relay, A/C Compressor Clutch Relay
57COOLING FAN20ARadioator Fan Relay

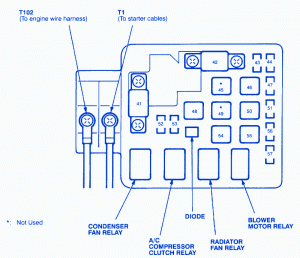

Honda Civic 2001 Main Relay Fuse Panel/Board – Fuse Symbol Map
