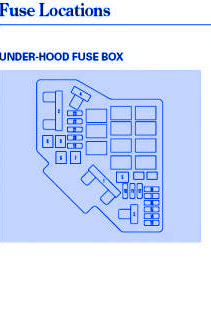

Honda CR-V 2010 Underhood Fuse Box/Block Circuit Breaker Diagram
| NO. | AMPS. | CIRCUITS PROTECTED |
|---|---|---|
| 1 | 100A | Battery |
| 70A | EPS | |
| 2 | 80A | Option Main |
| 50A | Ignition Switch Main | |
| 3 | 20A | ABS/VSA FSR |
| 40A | ABS/VSA Motor | |
| 4 | 50A | Headlight Main |
| 40A | Power Window Main | |
| 5 | 30A | EPTR-R |
| 6 | 20A | SUb Fan Motor |
| 7 | 20A | Main Fan Motor |
| 8 | 30A | Rear Defogger |
| 9 | 40A | Blower |
| 10 | 15A | Hazard |
| 11 | 15A | LAF |
| 12 | 15A | Stop and Horn |
| 13 | 20A | Power Seat DR RR HI/ Reclining |
| 14 | 20A | Power seat DR FR HI/ Sliding |
| 15 | 7.5A | IGPS OIL LEVEL |
| 16 | 30A | EPT-L |
| 17 | 15A | High Power Sound |
| 18 | 15A | IG COIL |
| 19 | 15A | F1 Main |
| 20 | 7.5A | MG Clutch |
| 21 | 15A | SBW |
| 22 | 7.5A | Interior Light |
| 23 | 10A | Back Up |
Honda CR-V 2010 Underhood Fuse Panel/Board – Fuse Symbol Map
