| Number | Ampere rating [A] | Circuits protected |
|---|---|---|
| 1 | — | Not Used |
| 2 | 7,5 | Seat Memory* |
| 3 | 15 | Washer |
| 4 | 10 | Wiper |
| 5 | 7,5 | Meter |
| 6 | 7,5 | ABS/VSA |
| 7 | 15 | ACG |
| 8 | 7,5 | STS |
| 9 | 20 | Fuel Pump |
| 10 | 10 | VB SOL2 |
| 11 | 10 | SRS |
| 12 | 7,5 | OPDS (Occupant Position Detection System) |
| 13 | — | Not Used |
| 14 | 10 | ACM |
| 15 | 7,5 | Daytime Running Lights |
| 16 | 7,5 | A/C |
| 17 | 7,5 | Accessory, Key, Lock |
| 18 | 7,5 | Accessory |
| 19 | 20 | Driver’s Power Seat Sliding |
| 20 | 20 | Moonroof |
| 21 | 20 | Driver’s Power Seat Reclining |
| 22 | 20 | Rear Left Power Window |
| 23 | 15 | Front Accessory Power Socket |
| 24 | 20 | Driver’s Power Window |
| 25 | 15 | Driver’s Side Door Lock |
| 26 | 10 | Left Front Fog Light |
| 27 | 10 | Left Side Small Lights (Exterior) |
| 28 | 10 | Left Headlight High Beam |
| 29 | 7,5 | TPMS |
| 30 | 15 | Left Headlight Low Beam |
| 31 | — | Not Used |
| A | — | Not Used |

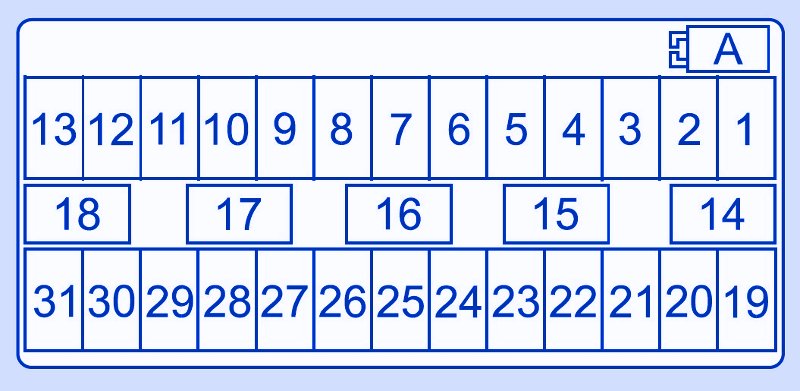

Honda Crosstour 2011 Interior Fuse Panel / Board – Fuse Symbol Map
