Honda Del Sol 1993 Fuse Box/Block Circuit Breaker Diagram

Honda Del Sol 1993 Fuse Box/Block Circuit Breaker Diagram



Fuse NumberAmpsComponent or Circuit Protected
1-Not Used
2-Not Used
37.5AIntegrated Control Unit, Ceiling Light, Trunk Light, Option Connector A
420ANot Used in USA
520APower Window Control Unit
6-Not Used
720APower Window Control Unit
820APower Window Control Unit
910ARight Headlight (High Beam) Daytime Running Lights Resistor (Canada)
1010ALeft Headlight (High Beam), High Beam Indicator Light, Daytime Running Lights Resistor (Canada)
1110AAuxiliary Light Relay
12-Not Used
137.5APower Mirrors, Air Delivery, Blower Motor Relay, Rear window Defogger, Radiator Fan Relay, Compressor Controls
1420AIntegrated Control Unit, Windshield Wiper Motor, Power Window Relay
1510AGauge Assembly; Roof Unlatched Indicator, Integrated Control Unit, Shift Lock Solenoid, A/T Gear Position Switch, Turn Signal Switch, Interlock Control Unit, Backup Light Switch, Master Switch
167.5ADaytime Running Light Control Unit (Canada), Option Connector C
1710ADaytime Running Light Control Unit (Canada), Option Connector B
187.5APGM-FI Main Relay, Engine Control Module (ECM), Integrated Control Unit
1910ADashlights, Parking Lights, Taillights, License Lights, Console Lights, Option Connector D
20-Not Used
2110ARight Headlight (Low Beam), Auxiliary Light Switch

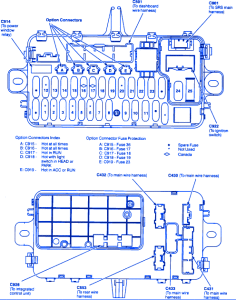

Honda Del Sol 1993 Fuse Panel/Board – Fuse Symbol Map
