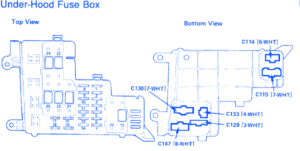

Honda DX 1988 Under Hood Fuse Box/Block Circuit Breaker Diagram

Honda DX 1988 Under Hood Fuse Box/Block Circuit Breaker Diagram



Fuse PositionAmpsCircuit Protected
110APGM-FI Main Relay
220APower Door Lock Control Unit
330ASunroof Relays
420AHorn, Brake Lights
510AHeadlight Retractor Switch
615ARight Retractor Relay
715ALeft Retractor Relay
810ACharging System
915ARadiator Fan
1010AHazard Lights, Integrated Control Unit
1110AEmission Control Unit, Clock, Radio
1215ASub-Radiator Fan Relay, A/C Condenser Fan Motor
1315ALghts, Interior, Door Courtesy, Ignition Key, Trunk/Hatch, Cigarette Lighter
1415ARadiator Fan Controller Timer
1515ALeft Rear Power Window
1615ARight Rear Power Window
1715ALeft Front Power Window
1815ARight Front Power Window
1940APower Distribution
2040APower Distribution
2170APower Distribution
2240APower Distribution
2330ARear Window Defogger
2430APTC Heater
2540APower Distribution

Honda DX 1988 Under Hood Fuse Panel/Board – Fuse Symbol Map
