Honda Fit Beautiful 2010 Fuse Box/Block Circuit Breaker Diagram
| NO. | AMPS. | CIRCUIT PROTECTED |
|---|---|---|
| 1 | 10A | Back Up |
| 2 | 7.5A | TPMS |
| 3 | 20A | Driver's Power Window |
| 4 | - | Not Used |
| 5 | 10A | Back Up Light |
| 6 | 10A | SRS |
| 7 | 10A | Transmission SOL |
| 8 | 7.5A | SRS |
| 9 | 20A | Fog Light |
| 10 | 7.5A | A/C |
| 11 | 7.5A | ABS/VSA |
| 12 | 10A | ACG |
| 13 | 20A | ACC Socket |
| 14 | 7.5A | Key Lock/Radio |
| 15 | 7.5A | Daytime Running Light |
| 16 | 10A | Rear Wiper |
| 17 | 20A | Front Passenger Power Window |
| 18 | 20A | Rear Passenger Side Power Window |
| 19 | 20A | Rear Driver's Side Power Window |
| 20 | 15A | Fuel Pump |
| 21 | 15A | Washer |
| 22 | 7.5A | Meter |
| 23 | 10A | Hazard |
| 24 | 10A | Stop/Horn |
| 25 | - | Not Used |
| 26 | 10A | LAF |
| 27 | 20A | Door Lock Main |
| 28 | 20A | Headlight Main |
| 29 | 10A | Small Light |
| 30 | 30A | Main Fan Motor |
| 31 | - | Not Used |
| 32 | 10A | Right Headlight Low Beam |
| 33 | 15A | IG Coil |
| 34 | 10A | Left Headlight Low Beam |
| 35 | 15A | Door Lock |
| 36 | 15A | Door Lock |
| 37 | 30A | ABS/VSA FSR |
| 38 | 15A | Door Lock |
| 39 | 15A | IGP |
| 40 | - | Not Used |
| 41 | - | Not Used |
| 42 | - | Not Used |
| 43 | 7.5A | MG Clutch |
| 44 | 7.5A | STS |
| 45 | - | Not Used |
| 46 | - | Not Used |
| 47 | 30A | Sub Fan Motor |
| 48 | 10A | Left Headlight High Beam |
| 49 | 15A | Door Lock |
| 50 | 15A | Door Lock |

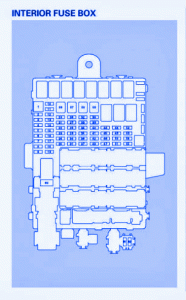

Honda Fit Beautiful 2010 Fuse Panel/Board – Fuse Symbol Map
