Honda Prelude 2005 Fuse Box/Block Circuit Breaker Diagram
| FUSE MAP | AMP |
|---|---|
| SRS | 10A |
| ECU | 15A |
| (ECU) | 15A |
| ACC | 10A |
| 4WS | 10A |
| (RR WIPER) | 10A |
| WIPER | 30A |
| P/W ASSISTANT | 20A |
| P/W DRIVER | 20A |
| (CRUISE CONTROL) | 7.5A |
| METER | 10A |
| (DIM DIP UNIT) | 7.5A |
| REAR DEFROSTER RELAY | 10A |
| R/C MIRROR | 15A |
| SUN ROOF | 30A |
| (DIM DIP) | 10A |
| ACG-S | 10A |
| BACK UP | 10A |
| (FRONT FOG LIGHT) | 15A |
| STARTER SIGNAL | 7.5A |

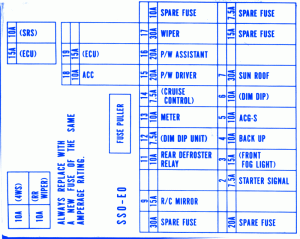

Honda Prelude 2005 Fuse Panel/Board – Fuse Symbol Map
