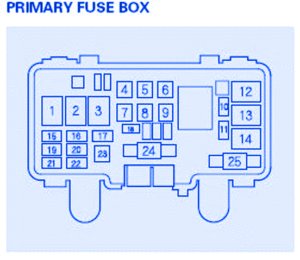

Honda Ridgeline 2006 Fuse Box/Block Circuit Breaker Diagram
| No. | Amps. | Circuit Protected |
|---|---|---|
| 1 | - | Lighting 1 Relay |
| 2 | - | Lighting 2 Relay |
| 3 | - | Horn Relay |
| 4 | 40A | power Window Motor |
| 5 | 20A | Right Soft Top Motor |
| 6 | 20A | Accesory Socket |
| 7 | 30A | Backup Acc |
| 8 | 20A | Left Soft Top Motor |
| 9 | 40A | Heater Motor |
| 10 | 20A | Condenser Fan |
| 11 | 20A | DBW |
| 12 | - | Condenser Fan Relay |
| 13 | - | Cooling Fan Relay |
| 14 | - | Magnetic Clutch Relay |
| 15 | 20A | Right Headlight |
| 16 | 15A | ACG S |
| 17 | 10A | Hazard Warning Lights |
| 18 | 30A | Cooling Fan |
| 19 | - | Not Used |
| 20 | 15A | Stop |
| 21 | 20A | Left Headlight |
| 22 | 30A | VSA F/S |
| 23 | 30A | VSA Motor |
| 24 | 100A | Battery |
| 25 | 40A | IG1 Main |
Honda Ridgeline 2006 Fuse Panel/Board – Fuse Symbol Map
