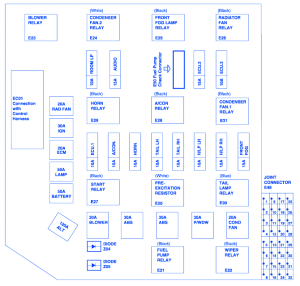

Hyundai Accent 2000 Pasenger Compartment Fuse Box/Block Circuit Breaker Diagram

Hyundai Accent 2000 Pasenger Compartment Fuse Box/Block Circuit Breaker Diagram



Fuse/Relay SymbolFuse/Relay MapAmps
E23Blower Relay
E24Condenser Fan 2 Relay
E25Front Fog Lamp Relay
E26Radiator Fan Relay
EC01Connection With Control Hamess
E28A/Con Relay
E29Horn Relay
E31Condenser Fan 1 Relay
E27Start Relay
E20Pre-Excitation Resistor
E21Fuel Pump Relay
E30Tail Lamp Relay
E22DRL Relay
RAD FAN20A
IGN30A
ECM20A
LAMP30A
BATTERY50A
ALT100A
BLOWER30A
ABS30A
ABS30A
P/WDW30A
COND FAN20A
ECU.110A
A/CON 110A
HORN10A
TAIL LH10A
TAIL RH10A
H/LP LH10A
H/LP RH10A
FRONT FOG15A
ROOM LP10A
AUDIO10A
ECU.215A
ECU.310A
A/CON.210A

Hyundai Accent 2000 Pasenger Compartment Fuse Panel/Board – Fuse Symbol Map
