Hyundai Tucson 2005 Engine Fuse Box/Block Circuit Breaker Diagram
| DESCRIPTION | FUSE RATING | PROTECTED COMPONENTS |
|---|---|---|
| FUSIBLE LINK IGN | 30A | Start Relay, Ignition Switch |
| ECU | 30A | Engine Control, Fuel Pump, A/C, Generator, ATM |
| BATT#1 | 50A | Ignition Switch, Power Connector |
| C/FAN | 50A | Cooling Fan |
| ABS#1 | 30A | ABS, ESC |
| ABS#2 | 40A | ABS, ESC |
| BLOWER | 30A | Blower |
| BATT#2 | 30A | Ignition Switch, Power Connector |
| FUSE INJ | 15A | Injector |
| SNSR | 10A | Cooling Fan, stop Lamp Switch, Oxygen Sensor, ECM/PCM |
| DRL | 15A | DRL |
| F/FOG | 15A | Front Fog Lamp |
| HORN | 15A | Horn, Siren |
| A/CON | 15A | A/C |
| H/LP (HI) | 15A | Head Lamp (HIGH) |
| H/LP (LOW) | 15A | Head Lamp (LOW) |

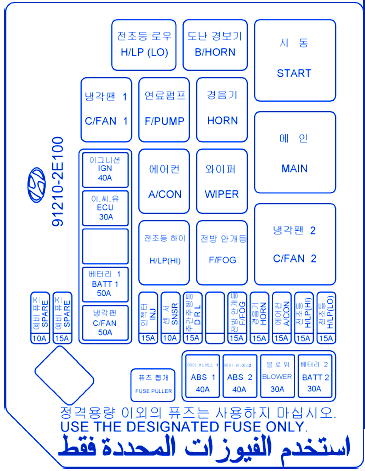

Hyundai Tucson 2005 Engine Fuse Panel/Board – Fuse Symbol Map
