Isuzu Rodeo 1998 Engine Fuse Box/Block Circuit Breaker Diagram

Isuzu Rodeo 1998 Engine Fuse Box/Block Circuit Breaker Diagram



No.AmperageIndication On Label
EB-115AHAZARD
EB-210AHORN
EB-3--
EB-420ABLOWER
EB-510AAIR CON.
EB-6--
EB-7--
EB-810AH/LAMP-LH
EB-910AH/LAMP-RH
EB-10L4: 10AO2 SENSOR
V6: 20AO2 SENSOR
EB-1120AFUEL PUMP
EB-1215AECM
EB-1315A(ABS)
EB-1415A(ABS H/U)
EB-1560AIGN.
EB-16100AMAIN
EB-1740A(ABS)
EB-18--
EB-1930A(COND. FAN)

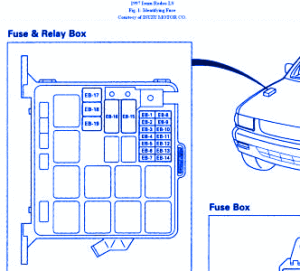

Isuzu Rodeo 1998 Engine Fuse Panel/Board – Fuse Symbol Map
