Iveco Daily IV 2006 Instrument Panel Fuse Box / Block Circuit Breaker Diagram

Iveco Daily IV  2006 Instrument Panel Fuse Box / Block Circuit Breaker Diagram
Iveco Daily IV 2006 Instrument Panel Fuse Box / Block Circuit Breaker Diagram

No.Ampere (A)Function
127.5ARight hand dipped headlight
137.5ALeft hand dipped headlight – headlamp attitude rectifier
313ARelay T08-T17 in CVM and BC
3215ARotating-translating door
3315AAir heater /Cigarette lighter
3420ASocket
3510AABS8 or ESP8. Telma
3620ACentral locking
375ASwitches for stop lights and various loads under 15
3810ABC / Roof lamps internal relays power supply
3915ACar radio – chrono-tachograph
4010ARh heated rear window
4110ALh heated rear window
425AReverse lights switch
4320AWindscreen wiper
44AVAILABLE
45AVAILABLE
46AVAILABLE
4725ADriver window winder
4825APassenger window winder
4915AECU for climate control system, car radio, heated seats
505AAirbag
515AChrono-tachograph
52AVAILABLE
537.5AInstrument cluster, rear fog lights

SymbolDescription
T-01Right and left hand dipped headlights
T-11Heated rear window
T-12Cigarette lighter / socket / heater or climate control system
T-13Power release from key

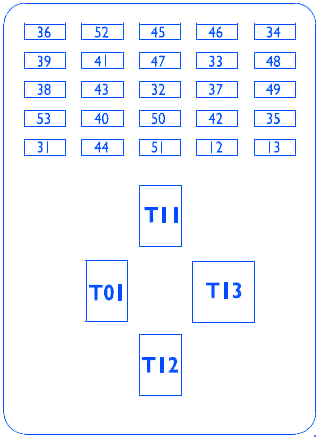

Iveco Daily IV 2006 Instrument Panel Fuse Panel / Board – Fuse Symbol Map
