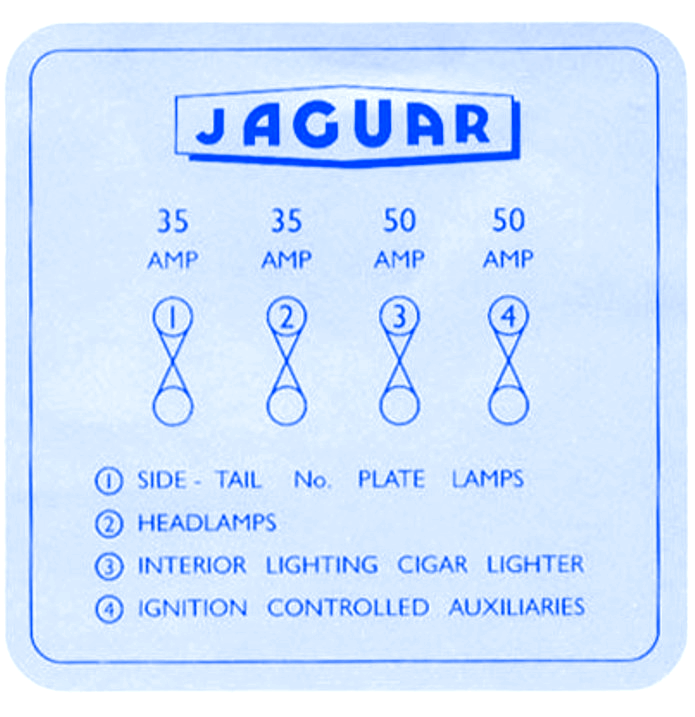

Jaguar Vanden 1992 Pin Out Fuse Box/Block Circuit Breaker Diagram
| SYMBOL | DESCRIPTION |
|---|---|
| 1 | Side-Tail No. Plate Lamps |
| 2 | Headlamps |
| 3 | Interior Lighting Cigar Lighter |
| 4 | Ignition Controlled Auxiliaries |

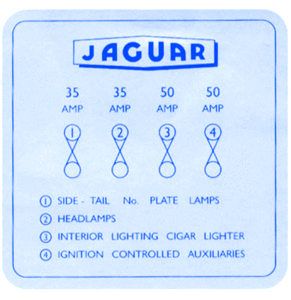

Jaguar Vanden 1992 Pin Out Fuse Panel/Board – Fuse Symbol Map
