Jaguar X Series 2.2D 2009 Distribution Fuse Box/Block Circuit Breaker Diagram
| Symbol | Description |
|---|---|
| R1 | Windshield Wiper Motor Relay |
| R2 | Windshield Heater Relay |
| R3 | Horn Relay |
| R4 | Accessory Power Relay |
| R5 | Power Wash Pump Relay |
| R6 | A/C Compressor Clutch Relay |
| R7 | EMS Control Relay |
| R8 | TCM Relay |
| R9 | DIP Beam Relay |
| R10 | Starter Relay |
| R11 | Throttle Motor Relay (2.5L &3.0L), Fuel Pump Relay (2.0L) |

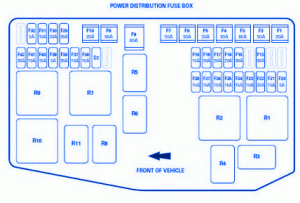

Jaguar X Series 2.2D 2009 Distribution Fuse Panel/Board – Fuse Symbol Map
