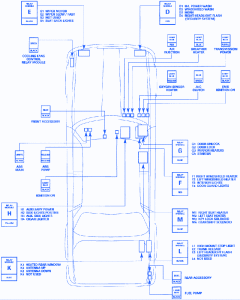

Jaguar XJ6 1994 Fuse Box/Block Circuit Breaker Diagram

Jaguar XJ6 1994 Fuse Box/Block Circuit Breaker Diagram



NumberColorValueCircuits
Left Fuse Panel
A1Red10ADriver's Seat ECU and Memory Mirror Heaters
A2Lt Green30ACooling Fans
A3Violet3ANot Used
A4White25ADriver's Seat Power
A5Violet3ALighting Logic, Ignition On Relay, Passenger's Seat Control, Radio Memory, Transmission ECU Memory, Center Console, LCD Lock
A6Red10APurge Control Valve, Air Injection Pump, Breather Heater, Data Link Power
A7Lt Green30ACooling Fans Rerlay Module
A8Yellow20AWindshield Wiper Motor
A9Violet3ANot Used
B1Lt Green30ALeft Rear Window Lift, Driver's Window Lift
B2Yellow20ASun Roof
B3Violet3ANot Used
B4Yellow20ALeft Blower
B5Red10AInstrument Pack
B6Red10ASecurity ECU
B7Violet3ANot Used
B8Lt Blue15ALeft Rear Lights:Fog Light, Reverse Light, Turn Signal, Stop Light
B9Lt Green30AABS Power
C1Yellow20AEngine Management System Power
C2Red10AInterior Lights, Cigar Lighter Illumination, Hood Lights
C3Red10ACPU Power
C4Red10AGear Shifft Interlock
C5White25ALeft Windshield Heater
C6Lt Green30AABS Pump
C7Red10ALeft Front Side Marker, Turn Signal, Side Light, Left Rear Tail, License, Side Marker Lights
C8Lt Blue15ALeft Headlight High Beam
C9Lt Blue15ALeft Headlight Low Beam, Left Front Fog Light
Right Fuse Panel
A1Red10ADriver's Lumbar Pump, Passenger's Lumbar Pump, Air Conditioning Clutch
A2Red10ATransmission Control Power
A3Violet3ANot Used
A4White25APassenger's Seat Power
A5Lt Blue15ACentral Locking
A6White25ATrailer Telephone

Jaguar XJ6 1994 Fuse Panel/Board – Fuse Symbol Map
