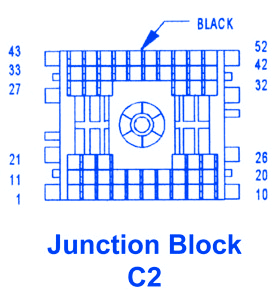

Jeep Grand Cherokee C2 2004 Fuse Box/Block Circuit Breaker Diagram
| CAV | CIRCUIT | FUNCTION |
|---|---|---|
| 1 | F22 20W/PK | Fused Ignition Switch Output (RUN) |
| 2 | - | - |
| 3 | L60 20TN | Right Turn Signal |
| 4 | L302 20LB/YL | Right Turn Switch Sense |
| 5 | L61 20TN/LG | Left Turn Signal |
| 6 | L91 20DB/PK | Hazard Switch Sense |
| 7 | - | - |
| 8 | L305 20LB/WT | Left Turn Switch Sense |
| 9 | - | - |
| 10 | L309 20PK/LG | High Beam Relay Control |
| 11 | F23 18DB/YL | Fused Ignition Switch Output (RUN) |
| 12 | F22 20WT/PK | Fused Ignition Switch Output (RUN) |
| 13 | - | - |
| 14 | F85 16VT/WT | Fused B(+) |
| 15 | C79 20BK/WT | Fused Rear Window Defogger Relay Output |
| 16 | - | - |
| 17 | - | - |
| 18 | - | - |
| 19 | - | - |
| 20 | - | - |
| 21 | - | - |
| 22 | - | - |
| 23 | - | - |
| 24 | A31 12RD/BK | Ignition Switch Output (RUN-ACC) |
| 25 | F60 16RD/WT | Fused B(+) |
| 26 | - | - |
| 27 | A41 12YL Fuse Box/Block Circuit Breaker Diagram | Ignition Switch Output (START) |
| 28 | F14 20LG/YL | Fused Ignition Switch Output (RUN-START) |
| 29 | A22 12BK/OR | Ignition Switch Output (RUN) |
| 30 | F991 180R/DB (DIESEL) | Fused Ignition Switch Output (RUN-START) |
| 31 | Z234 20BK | Ground |
| 32 | F33 20PK/RD | Fused B(+) |
| 33 | X12 20WT/RD | Fused Ignition Switch Output (RUN-ACC) |
| 34 | M1 20PK | Fused B(+) |
| 35 | M1 20PK (AZC) | Fused B(+) |
| 36 | A21 12DB | Ignition Switch Output (RUN-START) |
| 37 | - | - |
| 38 | F70 20PK/BK | Fused B(+) |
| 39 | X3 20Gy/OR | Horn Relay Control |
| 40 | F30 16RD | Fused Cigar Lighter Relay Output |
| 41 | F33 20PK/RD | Fused B(+) |
| 42 | - | - |
| 43 | V23 20BR/PK | Fused Ignition Switch Output (RUN-ACC) |
| 44 | M1 20PK | Fused B(+) |
| 45 | Z132 20BK/OR | Ground |
| 46 | - | - |
| 47 | - | - |
| 48 | F70 20PK/BK | Fused B(+) |
| 49 | - | - |
| 50 | G5 20DB/WT | Fused Ignition Switch Output (RUN-START) |
| 51 | G5 20DB/WT | Fused Ignition Switch Output (RUN-START) |
| 52 | F12 20DB/WT | Fused Ignition Switch Output (RUN-START) |
