Jeep Laredo 1995 Main Fuse Box/Block Circuit Breaker Diagram
| CAV | DESCRIPTION |
|---|---|
| RELAYS | |
| A | FOG LAP |
| B | FUEL PUMP |
| C | ABS PUMP MOTOR |
| D | A/C |
| E | AUTOMATIC SHUTDOWN |
| F | ENGINE STARTER |
| G | ABS SYSTEM |
| MINI FUSES | |
| 1 | IGNITION-OFF FRAW |
| 2 | AUXILIARY LAMPS |
| 3 | POWERTRAIN CONTROL MODULE |
| 4 | A/C COMPRESSOR CLUTCH |
| 5 | AIRBAG SYSTEM DIAGNOSTIC MODULE |
| 6 | TRANSMISSION CONTROL |
| MAXI FUSES | |
| A1 | ABS PUMP MOTOR |
| A2 | GENERATOR |
| A3 | ABS SYSTEM |
| A4 | EXTERIOR LIGHTING |
| A5 | BLOWER MOTOR |
| A6 | IGNITION SWITCH |
| A7 | IGNITION SWITCH |
| A8 | FUSE BLOCK |
| A9 | POWERTRAIN CONTROL MODULE |
| A10 | GENERATOR |

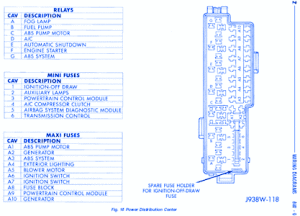

Jeep Laredo 1995 Main Fuse Panel/Board – Fuse Symbol Map
