Jeep Wrangler 6 2003 Holder Fuse Box/Block Circuit Breaker Diagram
| FUSE | AMPS | COLOR | DESCRIPTION | TYPE |
|---|---|---|---|---|
| F1 | 30A | GREEN | FUEL PUMP & AUTOMATIC SHUT DOWN | MAXI FUSE |
| F2 | 50A | RED | CHARGING CIRCUIT | |
| F3 | 50A | RED | BATTERY ACC FEED | |
| F4 | 40A | AMBER | IGNITION & ENGINE STARTER FEED | |
| F5 | 20A | YELLOW | HAZARD FLASHER FEED | |
| F6 | 50A | RED | CHARGING CIRCUIT | |
| F7 | 30A | GREEN | HEADLAMP FEED | |
| F8 | 20A | YELLOW | I.O.D & HORN FEED | |
| F9 | 40A | AMBER | ABS PUMP RELAY | |
| F10 | 30A | GREEN | ABS POWER RELAY | |
| F11 | MINI FUSE | |||
| F12 | ||||
| F13 | 2A | GRAY | ABS CONTROL MODULE | |
| F14 | ||||
| F15 | 10A | RED | HORN/HORN RELAY | |
| F16 | 10A | RED | I.O.D. CIRCUITS |

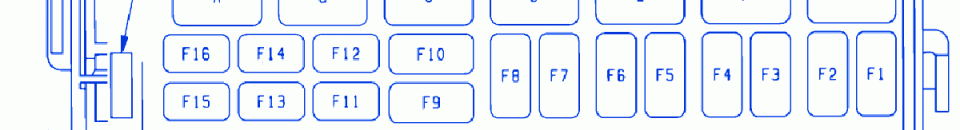

Jeep Wrangler 6 2003 Holder Fuse Panel/Board – Fuse Symbol Map
