FuseAmpsProtected Systems
120APower Antena Relay (1993), Trailer Tow Relay(1993-95)
215Brake Lamps
320AHazard Lamps
415ASecurity Lamp
515AInterior Lighting
615ASecurity Alarm Module
715ASecurity Alarm Relay, Security Alarm Module, Flash-To-Pass
815AOverhead Console, Keyless Entry, Radiio Memory/Clock/Chime Module, power Locks, Power Mirrors, HEVAC and VIC
920ARear Wiper
1015A(1993)Radio Accessory
10A(1994-95)Radio
1115ACigar Lighter
1215AParking Lamps, Automatic Headlamps
1320AHorn Relay
1420APower lock Relay
153AABS Module and Relay
1620ATurn Signals
177.5AHeater and A/C Module
1815AAir Bag Module
1915AInterior Mirror, Auto Headlamps, Overhead Console, VIC/GDM Module, Heated Rear Window Relay, Coil, Illuminated Entry Relay, Chime Module
2010AHeated Rear Window Switch, Overdrive Switch, Speed Control
2115ACluster (1993), Security Alarm Module, Lamp Outage Module
2215AAir Bag Module, Speedometer, Tachometer, Telltales and Gauges
2315AHeated Mirror Feed, Heated Rear Window Switch
247.5AInstrument Panel Illumination
2530A(Circuit Breaker)Power Seats
2630A(Circuit Breaker)Power Windows (1993-95), Power Sunroof (1993-95)
2710A(Circuit Breaker)Security Alarm Module, Front Wiper
2830AHeated Rear Window Relay

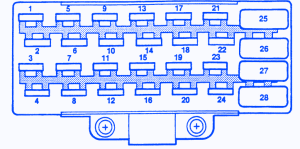

Jeep ZJ 1995 Main Fuse Panel/Board – Fuse Symbol Map
