Kia Cerato 2000 Fuse Box/Block Circuit Breaker Diagram

Kia Cerato 2000 Fuse Box/Block Circuit Breaker Diagram



FUSE SYMBOLAMPSFUSE MAP
180AMAIN
230AIGN 1
340ABTN 2
430AINJ
530AHEAD
640ABTN 1
740AIGN 2
815AMEMORY
930AA/CON
1040AABS
12-
1310AECU
1415AMAIN RLY
1510AO2 UP
1610AO2 DOWN
1710AF/PUMP
18MAIN RELAY
19F/PUMP RELAY

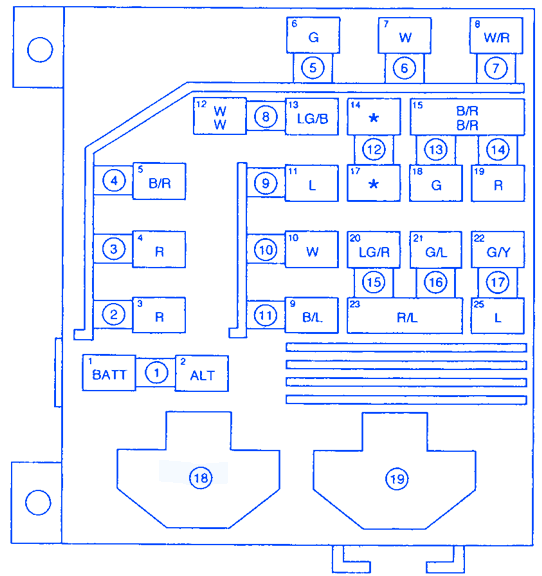

Kia Cerato 2000 Fuse Panel/Board – Fuse Symbol Map
