KIA Forte K3 2008 Primary Fuse Box/Block Circuit Breaker Diagram

KIA Forte K3 2008 Primary Fuse Box/Block Circuit Breaker Diagram



FUSE MAPAMPS
P/SEAT DRV30A
SPARE25A
P/WDW RH25A
TRUNK10A
P/WDW LH25A
DR LOCK20A
SPARE20A
POWER OUTLET20A
S/HEATER RR20A
MODULE10A
SPARE7.5A
SPARE7.5A
FUSE SWITCH-
MODULE10A
A/CON7.5A
MODULE7.5A
HTD MIRR10A
INTERIOR LAMP7.5A
MODULE7.5A
PDM7.5A
SUNROOF20A
MODULE10A
HTD STRG15A
IG120A
WIPER FRT25A
MULTI MEDIA7.5A
MEMORY7.5A
MODULE10A
PDM7.5A
MDPS7.5A
; MODULE7.5A
START7.5A
MUTI MEDIA15A
BRAKE SWITCH10A
PDM20A
POWER OUTLET20A
A/BAG IND7.5A
MODULE10A
A/BAG15A

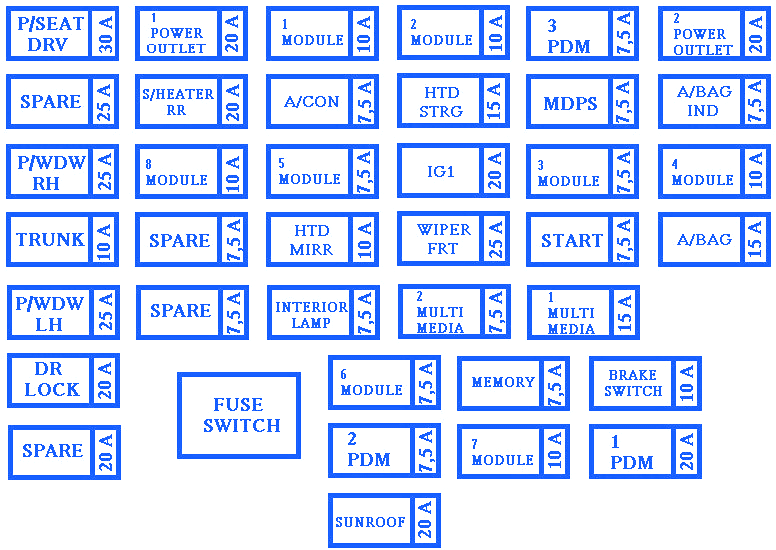

KIA Forte K3 2008 Primary Fuse Panel/Board – Fuse Symbol Map
