Kia Mentor 2000 Under The Dash Fuse Box/Block Circuit Breaker Diagram

Kia Mentor 2000 Under The Dash Fuse Box/Block Circuit Breaker Diagram



FUSEAMPSCOLORPROTECTED CIRCUIT
TAIL10ARedDaytime Running Light
FOG10ARedFog Light
AUDIO15ABlueAudio, Cigar Lighter Remote Control Door Mirror, Power Antenna
S/ROOF15ABlueSun Roof
DOOR LOCK30AGreenAuto Door Lock, Door Lock
ROOM15ABlueInterior and Spot Lamp, Clock, Trunk Compartment Lamp
STOP15ABlueStop Light, Back-Up Light, Horn
HAZARD10ARedHazard Warning
ABS30AGreenAnti-Lock Brake System
ENG.10ARedEngine
METER15ABlueInstrument Panel (Gauges and Warning Lamps), Turn Signal
Rr. DEF20AYellowRear Window Defroster
AIR BAG10ARedAir Bag System
F.WIPER20AYellowWindshield Wiper and Washer
HEATER20AYellowBlower Motor
POWER WINDOW30AGreenPower Window
Rr.WIPER10ARedRear Windshield Wiper and Washer

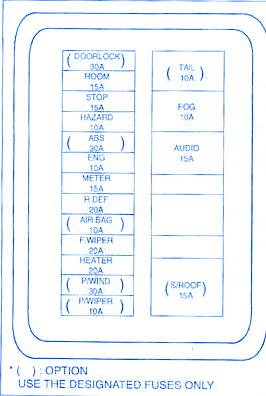

Kia Mentor 2000 Under The Dash Fuse Panel/Board – Fuse Symbol Map
