Kia Picanto 2005 Instrument Fuse Box/Block Circuit Breaker Diagram
| DESCRIPTION | FUSE RATING | PROTECTED COMPONENT |
|---|---|---|
| HORN | 20A | Horn |
| ABS2 | 30A | ABS |
| P/TRN | 10A | PCM, Main Relay |
| INJECTOR | 15A | PCM |
| AUDIO | 15A | Audio |
| HEAD (HI) | 15A | Head Light |
| ILLUMI | 10A | Key Hole Illumination |
| O2 (DN) | 15A | PCM |
| HEAD (LO) | 15A | Head Light |
| EXT | 10A | DRL, License Lamp, Tail Lamp, Position Lamp, Turn Lamp |
| P/W (LH) | 25A | Power Window |
| O2 (UP) | 15A | PCM |
| DEF | 25A | Defroster |
| FUEL | 15A | Fuel Pump Relay |
| P/W (RH) | 25A | Power Window |
| ECU | 10A | PCM, Cooling |
| MEMORY | 10A | Front Heater & Aircon, Etwis, Keyless Entry System |
| IGN 2 | 30A | Ignition Switch |
| BTN 3 | 30A | Turn & Hazard Flasher Unit , Power Door Lock |
| ABS 1 | 30A | ABS |
| R.HTR | 30A | Rear Heater & Aircon |
| C/FAN 1 | 40A | Cooling System |
| F/BLW | 30A | Front Heater & Aircon |
| C/FAN 2 | 30A | Cooling System |
| BTN 1 | 40A | Cigar Lighter, Power Socket |
| IGN 1 | 30A | Ignition Switch |
| BTN 2 | 40A | Power Seat, PCM |

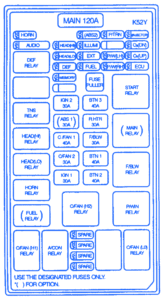

Kia Picanto 2005 Instrument Fuse Panel/Board – Fuse Symbol Map
