Kia Rio5 2008 Main Relay Fuse Box/Block Circuit Breaker Diagram
| AMPS | FUSE MAP | ||
|---|---|---|---|
| 10A | B/UP LP | ||
| 10A | ABS | ||
| 15A | IG COIL | ||
| 20A | DR LOCK | ||
| 15A | STOP | ||
| 20A | S/ROOF | ||
| 10A | H/LP RH | ||
| 10A | S/ROOF BLW | ||
| 25A | F/WPR | ||
| 10A | H/LP LH | ||
| 15A | R/WPR | ||
| 10A | CLUSTER | ||
| 10A | ECU | ||
| 10A | F/FOG | ||
| 25A | AMP | ||
| 20A | S/HTD | ||
| 25A | C/LIGHT | ||
| 15A | AUDIO | ||
| 10A | MULT B/UP | ||
| 10A | SNSR | ||
| 10A | TCU | ||
| 15A | A/BAG | ||
| 30A | RR/HTD | ||
| 10A | IGN | ||
| 10A | AUDIO | ||
| 25A | P/WDW RH | ||
| 10A | START | ||
| 10A | A/BAG IND | ||
| 10A | T/SIG | ||
| 10A | HAZARD | ||
| 10A | TAIL RH | ||
| 10A | TAIL LH | ||
| 10A | HTD MIR | ||
| 25A | P/WDW LH | ||

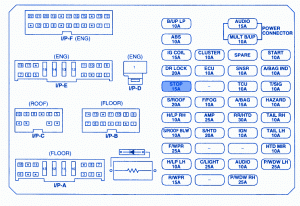

Kia Rio5 2008 Main Relay Fuse Panel/Board – Fuse Symbol Map
