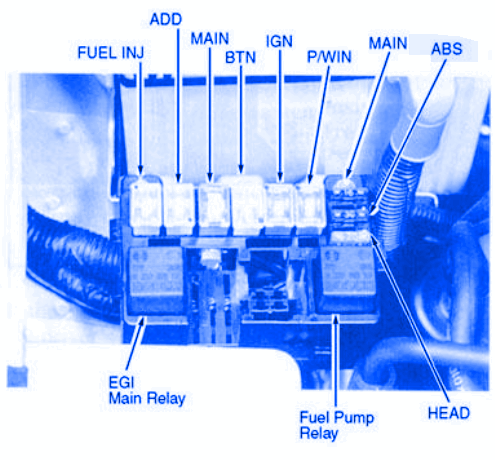

KIA Sportage SUC 4×4 2010 Fuse Box/Block Circuit Breaker Diagram
| Description | Fuse Rating | Protected Component Engine Compartment Fuses | ||
|---|---|---|---|---|
| FUEL INJ | 30A | Fuel injection System | ||
| ADD | 30A | A/C Condenser Fan | ||
| MAIN | 80A | For Protection of all Circuits | ||
| BTN | 60A | Brake Lights, License Plate Lights, Dome Light, Hazard Lights | ||
| IGN | 30A | Ignition | ||
| P/WIN | 40A | Power Windows | ||
| MAIN | 15A | Fuel Pump, Injector Main Relay, Fuel Pump Relay | ||
| ABS | 30A | Anti-Lock Brake System | ||
| HEAD | 20A | Headlighhts | ||
KIA Sportage SUC 4×4 2010 Fuse Panel/Board – Fuse Symbol Map
