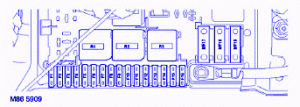

Land Rover Range Rover HSE 2003 Fuse Box/Block Circuit Breaker Diagram
| Fuse | Rating | Vohiclo | Function | ||
|---|---|---|---|---|---|
| F1 | 20A | All | Front Cigar Lighter, Rear Cigar Lighter, Front Accessory Socket | ||
| F2 | 25A | All | Relay4. | ||
| F3 | 25A | All | Relay2 | ||
| F4 | 15A | All | Trailer Pick-up | ||
| F6 | 20A | All | Trailer Pick-up | ||
| F7 | 20A | All | Rear Accessory Socket | ||
| F9 | 30A | All | Heated Rear Window Relay | ||
| F10 | 20A | All | Rear Screen Wiper Motor | ||
| F11 | 20A | All | Seat Heat Relay | ||
| F12 | 15A | All | Rear Blower Motor Relay | ||
| F14 | 5A | All | RF Receiver | ||
| F15 | 25A | All | Fuel Pump Relay | ||
| F16 | 10A | All | Tail Door Relay | ||
| Maxi-Fuse | |||||
| MF17 | 50A | All | Trailer ECU | ||
| MF18 | 50A | All | Air Suspension Relay | ||
| MF19 | 50A | All | Not Used | ||
Land Rover Range Rover HSE 2003 Fuse Panel/Board – Fuse Symbol Map
