Land Rover Wolf 2002 Fuse Box / Block Circuit Breaker Diagram
| SYMBOL | DESCRIPTION |
|---|---|
| A Main Fusebox | |
| 1 | Stop Lights, Direction Indicators |
| 2 | LH Side Light |
| 3 | Radio / Cassette / CD Player |
| 4 | RH Headlight Main Beam |
| 5 | LH Headlight Main Beam |
| 6 | Cigar Lighter |
| 7 | Airbag SRS |
| 8 | RH Side Lights |
| 9 | Rear Fog Guard Lights |
| 10 | RH Headlight Dipped Beam |
| 11 | LH Headlight Dipped Beam |
| 12 | Multi-Function Unit |
| 13 | Ignition Feed for Multi-Function Unit |
| 14 | Instruments, Reversing Lights |
| 15 | Air Conditioning, Windows |
| 16 | Washer & Wiper - Front |
| 17 | Starter, Glow Plug |
| 18 | Wash/Wipe-Rear, Mirrors, Cruise Control |
| B Satellite 2 | |
| 1 | Electric Windows - Front |
| 2 | Electric Windows - Rear |
| 3 | Anti-Lock Braking |
| 4 | Central Door Locking |
| 5 | Electric Sun Roof |
| 6 | Trailer Lights |
| C Satellite 1 | |
| 1 | Anti-Theft Alarm |
| 2 | Headlight Washers |
| 3 | Engine Management |
| 4 | Anti-Lock Brakes |
| 5 | Anti-Theft Alarm |
| 6 | Rear Air Conditioning, Heater |
| D Spare Fuses (5 Off) | |

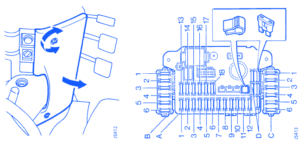

Land Rover Wolf 2002 Fuse Panel / Board – Fuse Symbol Map
