Lexus GS 430 2013 Main Fuse Box/Block Circuit Breaker Diagram

Lexus GS 430 2013 Main Fuse Box/Block Circuit Breaker Diagram



Fuse SymbolFuse MapRating
1EPS80A
2P/I-B60A
3LH J/B-B30A
4STARTER30A
5MAIN30A
6VGRS40A
7RH J/B-B30A
8ABS 150A
9E/G-B60A
10LH J/B-AM80A
11E/G-AM60A
12GLW PLG250A
13HEATER50A
14FAN140A
15DEFOG50A
16ABS230A
17RH J/B-AM80A
18GLW PLG150A
19RR J/B80A

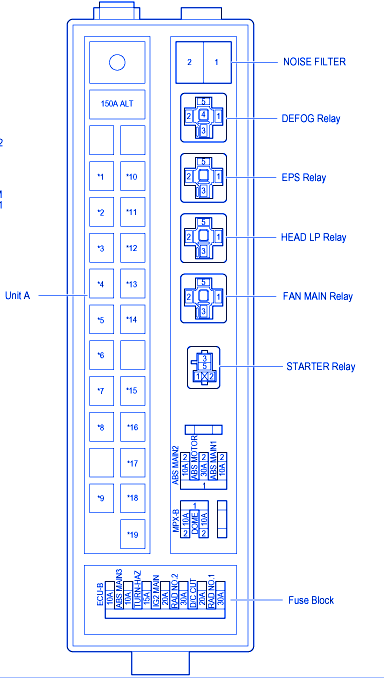

Lexus GS 430 2013 Main Fuse Panel/Board – Fuse Symbol Map
