Lexus SC-400 4.0L V8 1998 Fuse Box/Block Circuit Breaker Diagram
| Fuse/Relay Symbol | Rating | Fuse/Relay Map | ||
|---|---|---|---|---|
| 1 | - | - | ||
| 2 | 60A | ABS No.1(For High Current) | ||
| 3 | - | - | ||
| 4 | 100A | AM 1 | ||
| 5 | - | - | ||
| 6 | 150A | ALT (For 1UZ-FE) | ||
| 120A | ALT (For 2JZ-GE) | |||
| 7 | - | - | ||
| 8 | 60A | MAIN (For High Current) | ||
| 9 | - | - | ||
| 10 | 30A | AM 2 (For High Current) | ||
| 11 | - | - | ||
| 12 | 40A | ABS No.2 (For High Current) | ||
| Starter Relay | ||||
| Heater Relay | ||||
| Headlight Relay | ||||
| Defogger Relay | ||||
| Dimmer Relay | ||||
| EFI Main Relay | ||||
| A/C Magnetic Clutch Relay | ||||

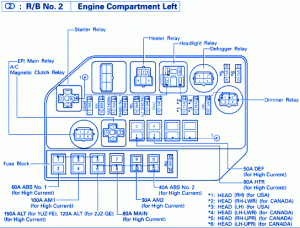

Lexus SC-400 4.0L V8 1998 Fuse Panel/Board – Fuse Symbol Map
