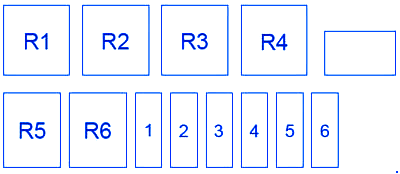

Lifan 520 Breez 2005 Engine Compartment Fuse Box / Block Circuit Breaker Diagram
Number A Description 1 15 Horn relay 2 25 Main relay 3 10 A/C compressor 4 15 1.3 & 1.6: Cooling fan high speed 1 5 20 1.3 & 1.6: Cooling fan high speed 2 6 20 1.3 & 1.6: Cooling fan low speed — 30 Fan — 30 ABS 7 30 1.6 L TRITEC: Fan 8 30 1.6 L TRITEC: Cooling fan low speed 9 30 1.6 L TRITEC: Cooling fan low speed 10 — 1.6 L TRITEC: Not Used 11 — 1.6 L TRITEC: Not Used 12 50 1.6 L TRITEC: Terminal 15 13 50 1.6 L TRITEC: Terminal 30
No. Relay map R1 Main relay R2 Cooling fan high speed 2 R3 Cooling fan high speed 1 R4 Cooling fan low speed R5 A/C compressor R6 Horn
Lifan 520 Breez 2005 Engine Compartment Fuse Panel / Board – Fuse Symbol Map
