Lifan 620 Dash Board Fuse Box / Block Circuit Breaker Diagram
Number A Description 1 10 BCM Central Lock Power Supply 2 15 BCM steering light/warning lamp 3 10 Fuel pump 4 15 Wiper 5 15 Cigarette lighter 6 10 — 7 10 ABS control power supply 8 5 BCM common power supply 9 5 Rear fog light 10 15 Audio-visual system working power 11 15 Electric horn 12 5 Power supply for switching on the audio-visual system 13 10 Reversing lamp 14 5 BCM ignition 15 5 Door/luggage boot lights 16 10 Small light 17 15 — 18 10 Exterior rearview mirror 19 10 A/C controller ignition 20 5 Braking lamp
Number A Description 21 10 Air bag control power 22 10 Roof light 23 30 Power supply for glass regulator 24 5 — 25 10 — 26 15 Power supply for instrument cluster 27 — — 28 — — 29 10 Power supply for sun roof 30 20 — 31 — — 32 — — 33 — — 34 30 Ignition Am2 35 30 Ignition Am1 36 30 Rear defrosting 37 — Picker 38 30 — 39 15 Instrument cluster ignition 40 20 — 41 15 Magnetic power supply for power generator/ power generator ECU control ignition coil/ cam sensor/ vehicle speed sensor

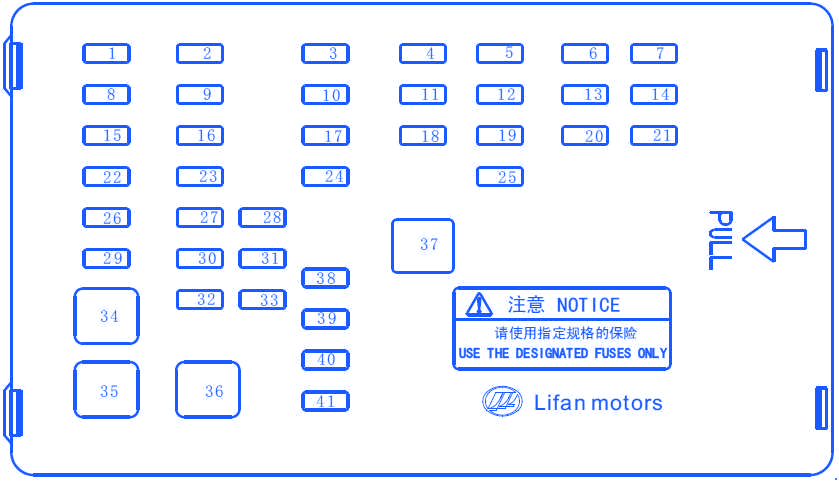

Lifan 620 Dash Board Fuse Panel / Board – Fuse Symbol Map
