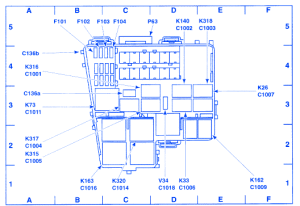

Lincoln LS 2000 Auxiliary Junction Fuse Box/Block Circuit Breaker Diagram

Lincoln LS 2000 Auxiliary Junction Fuse Box/Block Circuit Breaker Diagram



SymbolDiscription
K26Fog Lamp Relay
K33Horn Relay
K73Blower Motor Relay
K140Wiper Run/Park Relay
K162Winshield Wiper Relay
K163PCM Power Relay
K315Auxiliary Coolant Pump Relay
K316Wiper High/low Relay
K317Winshield Washer Relay
K318COPS & heated Oxigen Sensor (HO2S) Relay
K320Heated Wiper Park Relay
P63Auxiliary Junction Box (AJB), Underhood
V34PCM Module Power Diode

Lincoln LS 2000 Auxiliary Junction Fuse Panel/Board – Fuse Symbol Map
